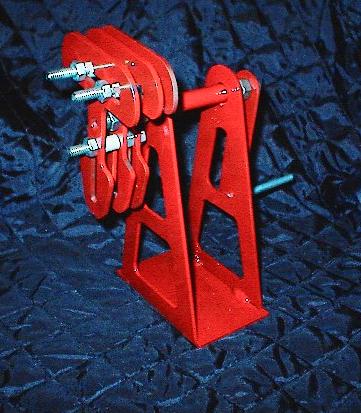

Coil winder base and optional universal triangular coil winding head shown above.

Below shows the base in kit form...

The basic base comes with all the parts to build up the base winder and you can make your own winding head for the different coils you wish to wind as needed.

>>>Assembly instruction can be downloaded at the bottom of this page <<<

The winder is a very sturdy and durable little winder.   Those of us with the addiction of making our own power its a must have when winding lots of coils for various machines.   The plates are cut using a CNC plasma cutter in .070" steel and can be welded together in a matter of minutes.

Simply paint it, clamp it to the bench or table and your ready to start winding.

Pricing is as follows...

Basic winding base    $14.95

Basic winding base comes with all steel parts and hardware to complete the base.   You can fabricate a simple winding head from plywood or plastics for the coil sizes you need.

Universal triangular winding head   $12.95

Winding head comes with all the hardware to mount the head on the base as well as all the hardware to assemble it as shown above.   Also includes spacers for 1/4" and 1/2" thick coils.

Welded kit add  $5.00

Email me for availability, payment and shipping details.... elenz(at)windstuffnow(dot)com

Below shows a close up shot of an unpainted kit with the optional head assembled...

Assembly instruction can be downloaded here in pdf format 250k

Pictures of the winder with coils completed...
